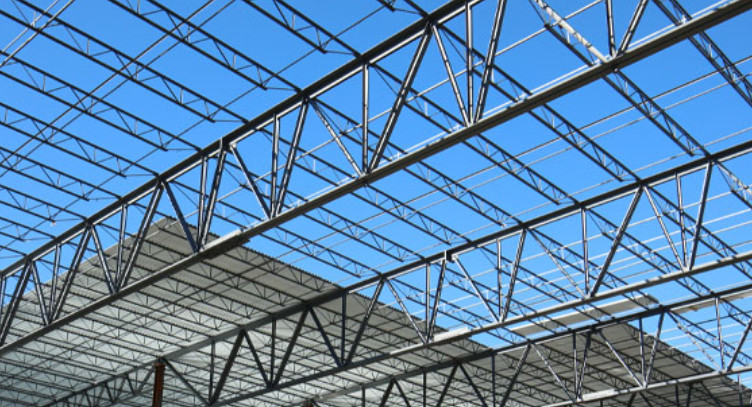

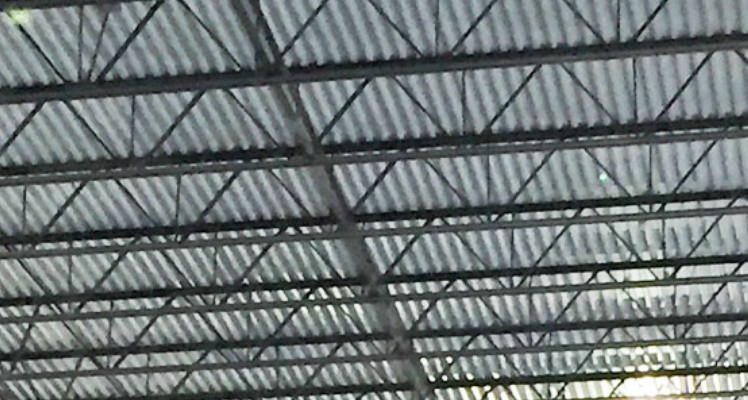

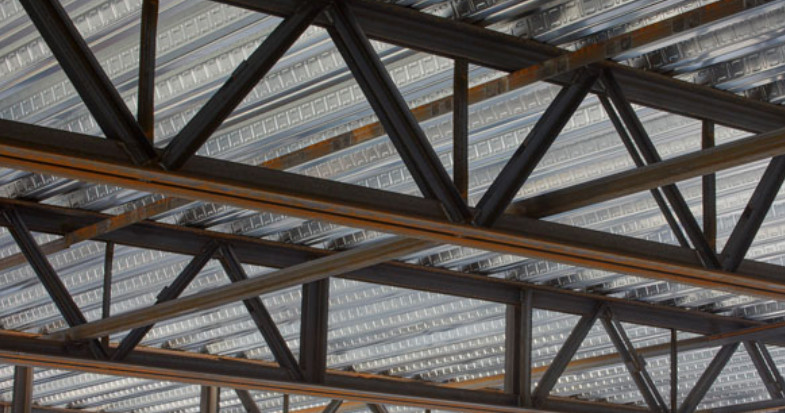

Prefab Steel Structure Warehouse Hotel Commercial Building Roof Truss Joist


Steel structure is a structure composed of steel materials and is one of the main types of building structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plates, and adopts rust removal and rust prevention processes such as silanization, pure manganese phosphating, washing and drying, and galvanizing. Welds, bolts or rivets are usually used to connect components or parts. Because of its light weight and simple construction, it is widely used in large workshops, venues, super high-rises and other fields.

Steel is characterized by high strength, light weight, good overall rigidity, and strong resistance to deformation. Therefore, it is particularly suitable for the construction of large-span, ultra-high, and super-heavy buildings; the material has good homogeneity and isotropy, which is ideal elasticity Material, which best meets the basic assumptions of general engineering mechanics; the material has good plasticity and toughness, can have large deformation, and can withstand dynamic loads well; the construction period is short; it has a high degree of industrialization, and can be specialized in production with a high degree of mechanization.

Specification:


Features:
1. High material strength and light weight
Steel has high strength and high modulus of elasticity. Compared with concrete and wood, the ratio of its density to yield strength is relatively low, so under the same stress conditions, the steel structure has a small cross-section and light weight, which is convenient for transportation and installation, and is suitable for large spans, high heights, and heavy loads Structure.
2. Steel toughness, good plasticity, uniform material and high structural reliability
It is suitable for bearing shock and dynamic load, and has good seismic performance. The internal structure of steel is uniform, close to isotropic homogeneous body. The actual working performance of the steel structure is more in line with the calculation theory. Therefore, the reliability of the steel structure is high.
3. High degree of mechanization of steel structure manufacturing and installation
Steel structural members are easy to manufacture in factories and assemble on site. The factory mechanized manufacturing of steel structural components has high precision, high production efficiency, fast assembly speed on site, and short construction period. Steel structure is the most industrialized structure.
4. Good sealing performance of steel structure
Because the welded structure can be completely sealed, it can be made into high-pressure containers, large oil pools, pressure pipes, etc. with good air tightness and water tightness.
5. Steel structure is heat-resistant and not fire-resistant
When the temperature is below 150 °C, the properties of the steel change little. Therefore, the steel structure is suitable for hot workshops, but when the surface of the structure is exposed to heat radiation of about 150 ° C, it should be protected by a heat insulation board. When the temperature is between 300°C and 400°C, the strength and elastic modulus of the steel decrease significantly. When the temperature is around 600°C, the strength of the steel tends to zero. In buildings with special fire protection requirements, the steel structure must be protected by refractory materials to improve the fire resistance rating.
6. Poor corrosion resistance of steel structure
Especially in the environment of wet and corrosive media, it is easy to rust. Generally, the steel structure needs to be derusted, galvanized or painted, and it needs to be maintained regularly. For the structure of the offshore platform in seawater, special measures such as "zinc block anode protection" should be adopted to prevent corrosion.
7. Low carbon, energy saving, green and environmental protection, reusable
The demolition of steel structure buildings hardly produces construction waste, and the steel can be recycled and reused.

Application:
Compared with ordinary reinforced concrete structures, steel structures have the advantages of homogeneity, high strength, fast construction speed, good seismic resistance and high recovery rate. The strength and elastic modulus of steel are many times higher than those of masonry and concrete. Under the same conditions, the weight of steel components is light. From the perspective of damage, the steel structure has a large deformation omen in advance, which belongs to the ductile failure structure, which can detect the danger in advance and avoid it.
The steel structure workshop has the advantages of overall light weight, saving foundation, less materials, low cost, short construction period, large span, safety and reliability, beautiful appearance and stable structure. Steel structure workshops are widely used in construction industries such as large-span industrial plants, warehouses, cold storages, high-rise buildings, office buildings, multi-storey parking lots and residential buildings.

Steel structure installation:
Prefabrication of steel elements:
The prefabrication and assembly of steel components are carried out on the steel platform according to the installation sequence and process requirements, and the welding quality must be guaranteed.
The distance between the splicing flange plate splicing seam and the web splicing seam of the profiled steel should be greater than 200mm. The splicing length of flange plates should not be less than 2 times the plate width; the splicing width of web plates should not be less than 300mm, and the length should not be less than 600mm.
In order to facilitate the welding and ensure the welding quality, try to make butt welding on the steel platform on the ground steel platform according to the size of the construction drawing, as far as possible, the stiffener plates, connecting plates, backing plates, and beams (beams) on the columns and beams.
In addition to the fabrication and assembly of prefabricated steel components on the steel platform according to the construction drawings and specifications, the manufacturability of on-site installation and changes in installation dimensions should also be considered.
